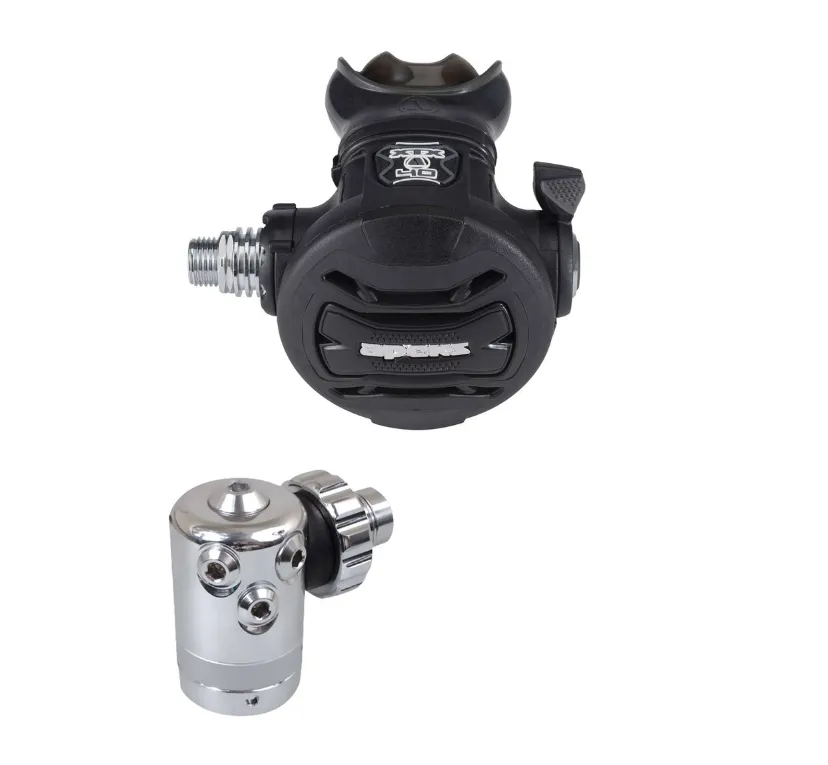

Apeks XTX40 Regulator DIN with DS4

The DS4 first stage lacks the rotating turret found on the XTX50 first stage and offers one HP port. This compact first stage is a time-proven workhorse that has been embraced by the technical community around the world.

This compact first stage has four low-pressure ports and one high-pressure port. Features an innovative Diver Changeable Exhaust system (DCE). The system gives the diver the ability to change from a small exhaust tee to a large exhaust tee. This gives the user a choice, wider exhaust tee for minimal bubble interference (essential for underwater photography), and narrow exhaust tee for a smaller compact comfortable regulator.

The regulator is supplied with both sets of exhaust tees. It can be converted from a right-handed hose configuration to a left-handed one. The process of changing the regulator to a left-handed configuration is both quick and simple. However, this procedure must ONLY be performed by an APEKS Authorised Service Technician

Braided Flexi-hoses are now standard on all models. These hoses are lighter weight, more flexible, and more durable. Suitable for coldwater use (below 10 C / 50 F). Compatible with EAN40 out of the box

First Stage

• DS4 first stage – no rotating turret.
• Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
• An environmental dry system keeps water out of the main spring chamber thus preventing ice build up and keeping silt and contamination out.

Second Stage

• Pneumatically-balanced second stage results in smooth, easy breathing.
• The XTX purge buttons are large and easy to operate. A 2-stage progressive purge is used - press the purge on the side for a lower flow rate, useful where more control is required such as filling lift bags, etc, then press in the centre for the full effect of the purge, i.e. when regulator clearing, etc.
• The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.
• An easy-to-grip opening effort control knob keeps the diver in control.
• The second stage is manufactured with active protection against infection as all moulded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria, and fungi, and is also very effective against viruses, mould, yeast, and algae.
• A silicone exhaust valve improves the breathing performance of the regulator.
• The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue.
• A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
